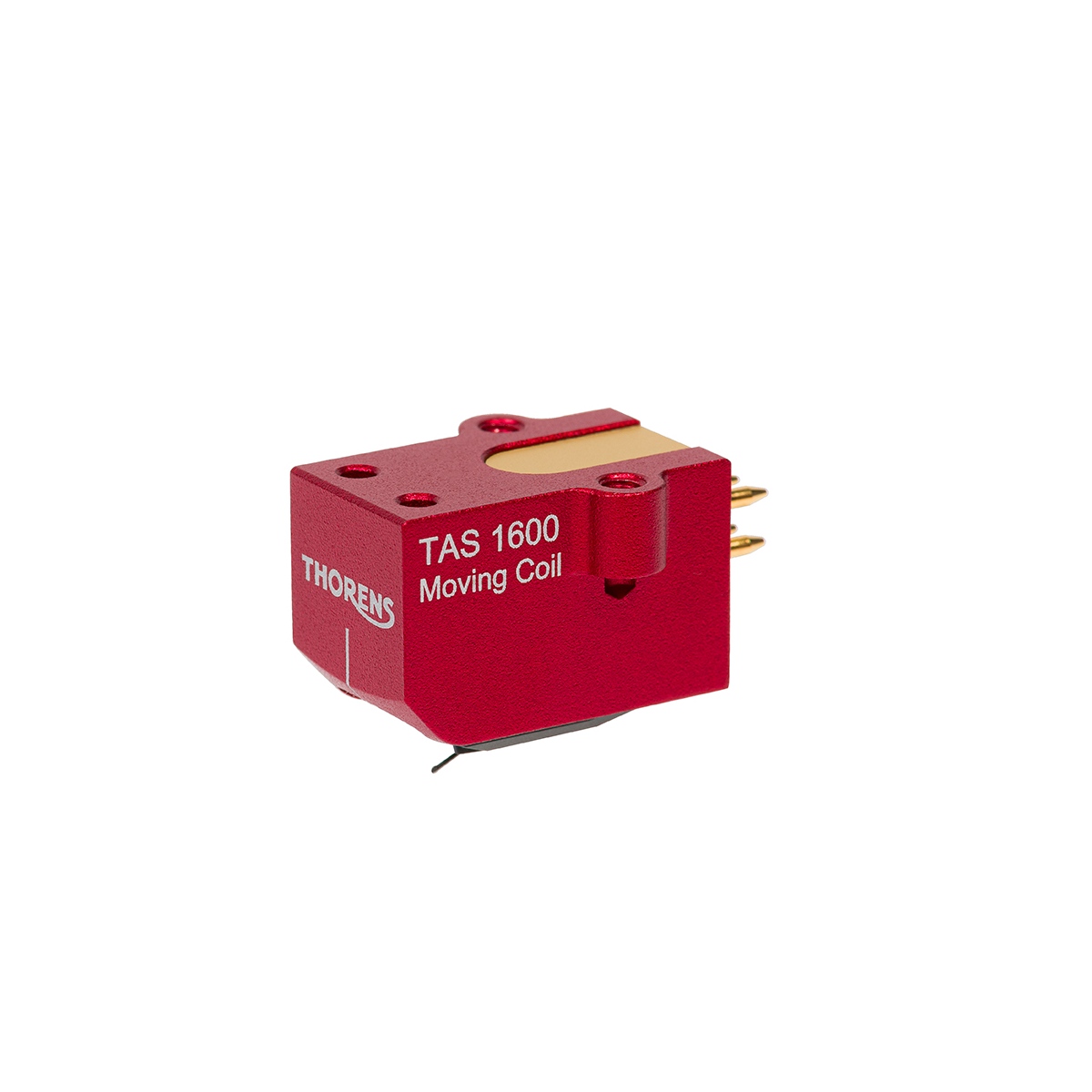

Thorens TAS1600 Cartridge

Mounting : 1/2” centers / Threaded inserts
Frequency Response : 20 – 50,000 Hz
Body : Aluminium
Channel Separation : 28 dB (1 kHz)
Output Channel Balance : 0.5 dB (1 kHz)
Output Voltage : 0,4 mV (1 kHz, 5 cm/sec)
Vertical Tracking Angle : 20 degrees
Tracking force, recommended : 1,8 to 2,2 g (standard 2,0 g)
Stylus Shape : Special Line Contact
Stylus Size : 1,5 x 0,28 mil
Stylus Construction : Nude rectangular shank
Cantilever : 0,28 mm Ø nude boron
Coil Impedance : 12 Ohms (1 kHz)
Coil Inductance : 25 μH (1 kHz)
DC Resistance : 12 Ohms
Static Compliance : 22 x 10 – 6 cm / dyne
Dynamic Compliance : 18 x 10 – 6 cm / dyne (100 Hz)
Terminal Pins : Brass
Wire Used for Coil : PCOCC (Copper by Ohno Continuous Casting process)
Recommended Load Impedance : min 100 Ohms
Cartridge Weight : 8,2 g
